Log in to Open Stack and Creating Route

Use the IP to login to the web interface and use the user name and password (Password in local.conf file)

Web interface

After login first interface will be like this

Now we are going to create two networks I'm using the name as -

GREEN

BLUE

Note :- You can use any name you want





 Now we have to create the subnet and give subnet name

Note:- You can use any name you want (if you give the same  name as for the network it will be easy to find)

Give the network address with a subnet

Note -: Use the IP that you have used when you creating the Ubuntu machine



 Follow the same steps for the other interface (BLUE) as well



Now move to the INSTANCE Tab





 Give the Instance name

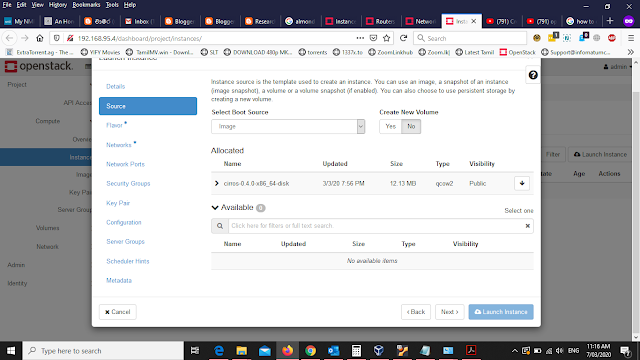

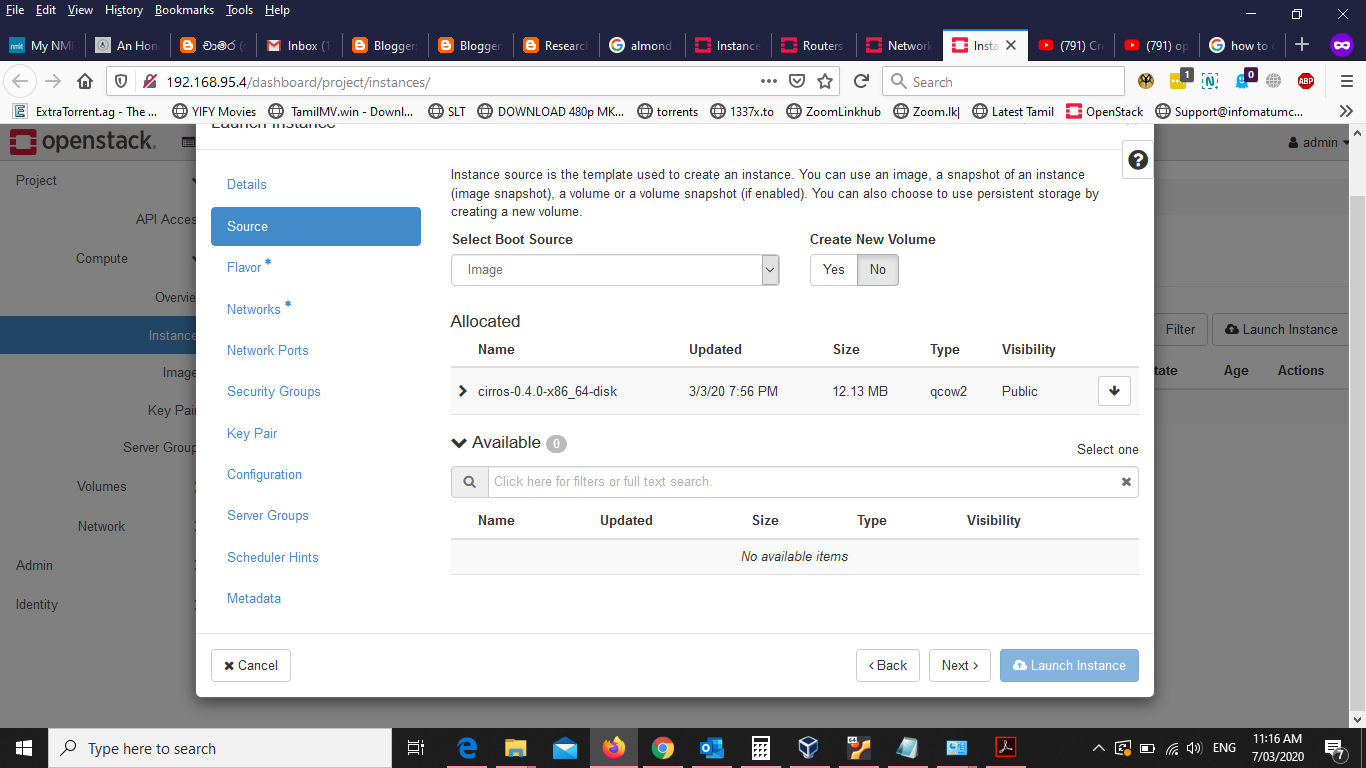

 Now move to the SOURCE tab and Create new Volume as " NO"

 Move the "cirros-0.4.0-x86_64-disk" to Allocate

Use the arrow to move the drive to ALLOCATE



 Now move to the FLAVOUR tab

Move the "flavor m1.nano" to Allocate



Now move to the NETWORK tab

Move the "GREEN" to Allocate

 Repeat the same steps for the BLUE interface  as well



After adding two interfaces log in to the console

  Right-click on the interface and open it in new tab



 Go to the instance and click the Console tab

It will take time to load



 Loading......



 login Screen

login Details

Login name -: cirros

Password -: gocubsgo

Note after Login if you want to clear the screen use "clear" command

After login ping to the interface GREEN and you should get respond

When you ping for the BLUE you want to get respond





Creating the Router

Give the name as ROUTER_1 or any name as you Prefer





Click the router in the network topology and select the add interface option to add interfaces



After adding the Route it will be like in the above image



 After creating the all interface Topology will be like this



Now try to ping to blue interface and you should get a reply
